16.4  Cross Referencing Tool

The cross referencing library xref analyses an ECLiPSe source module or file and builds its predicate call graph. The graph can either be returned in the format of lib(graph_algorithms), as text, or as a graphical display.

The xref/2 predicate is invoked as xref(File, Options). This generates a call graph for the file File according to the Options list. The options specify the format of the graph to be generated, whether calls to built in predicates are displayed and whether it is a caller or callee graph:

?- xref:xref(queen, []).

nodiag / 3 calls:
        nodiag / 3

qdelete / 4 calls:
        qdelete / 4

qperm / 2 calls:
        qdelete / 4
        qperm / 2

queen / 2 calls:
        qperm / 2
        safe / 1

safe / 1 calls:
        nodiag / 3
        safe / 1

Yes (0.01s cpu)
?- xref:xref(queen,[builtins:on,output:daVinci]).
WARNING: module 'daVinci' does not exist, loading library...
daVinci.ecl compiled traceable 5644 bytes in 0.01 seconds

The first xref predicate call generates a textual call graph for the queen module, while the second generates the daVinci graph illustrated in figure 16.1.

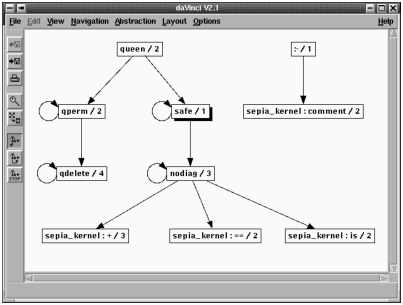

Figure 16.1: Call graph for queen example with built-in predicates
